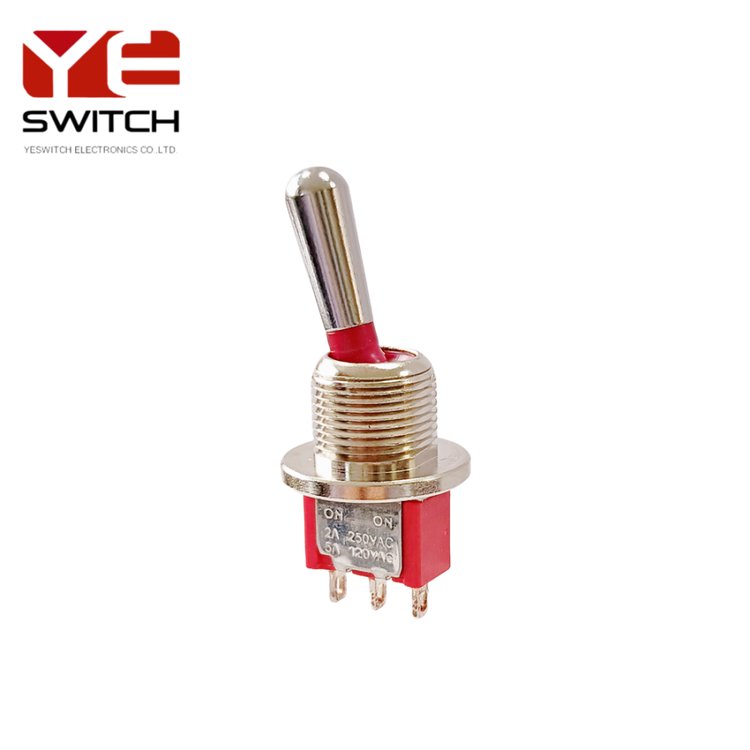

小型防水钮子开关 平替NKK品牌防水钮子开关
详细介绍
平替NKK品牌钮子开关,小型防水纽子开关，飞行模拟器面板钮子开关，小型防水钮子开关 平替NKK品牌防水钮子开关

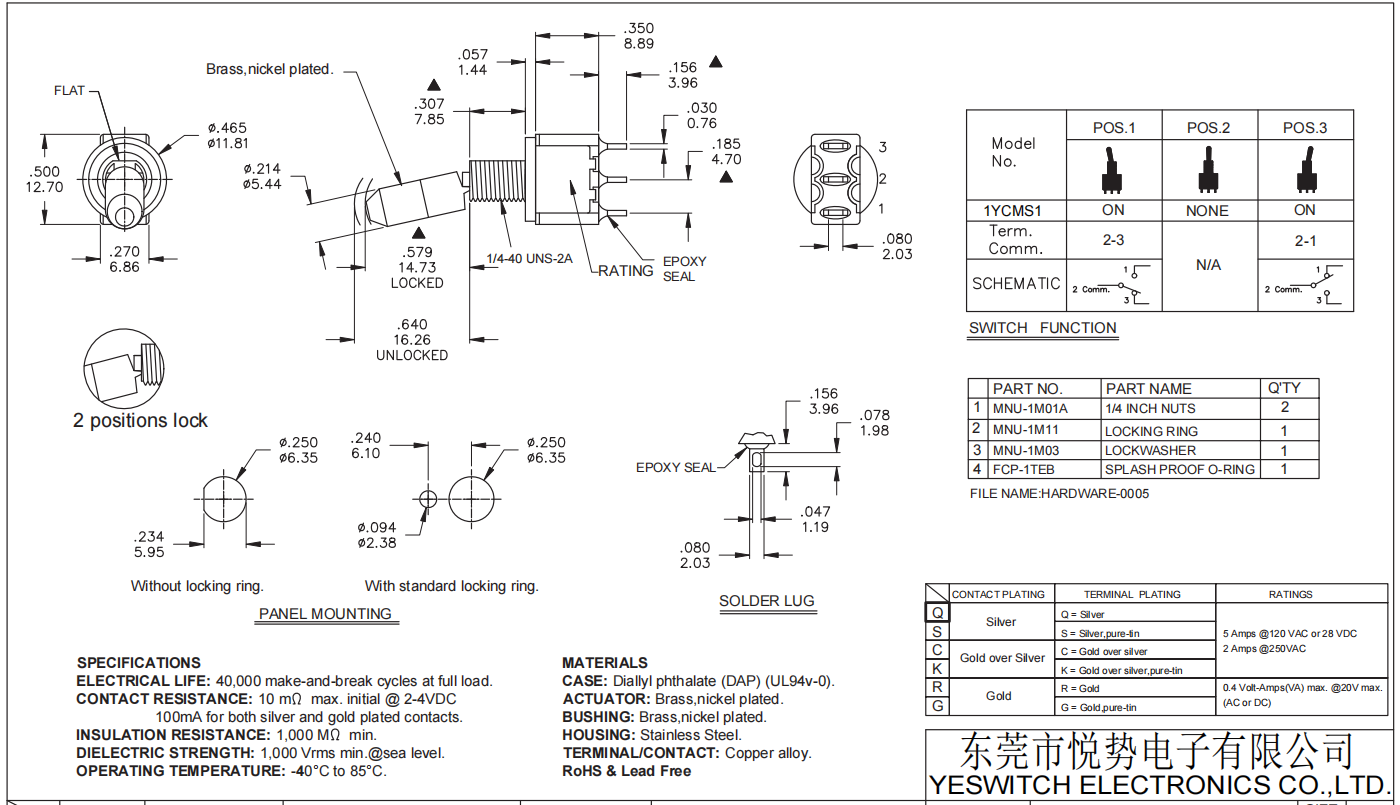

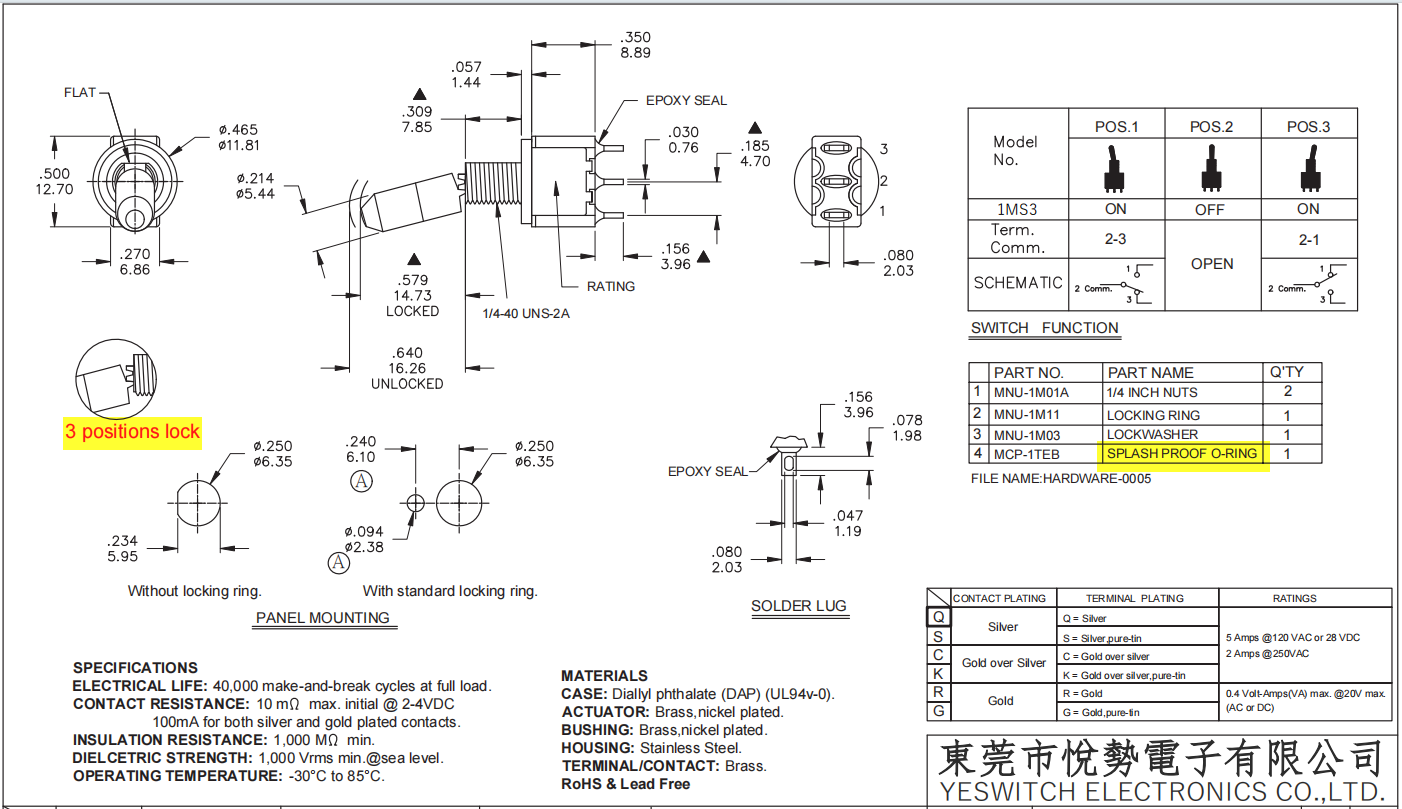

SPECIFICATIONS
ELECTRICAL LIFE: 40,000 make-and-break cycles at full load.
CONTACT RESISTANCE: 10 m
max. initial @ 2-4VDC
100mA for both silver and gold plated contacts.
INSULATION RESISTANCE: 1,000 M
min.
DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level.
OPERATING TEMPERATURE: -40°C to 85°C.
Silver/Gold over Silver：
5 Amps @120 VAC or 28 VDC
2 Amps @250VAC
Gold：0.4 Volt-Amps(VA) max. @20V max.(AC or DC)
MATERIALS
CASE: Diallyl phthalate (DAP) (UL94v-0).
ACTUATOR: Brass,nickel plated.
BUSHING: Brass,nickel plated.
HOUSING: Stainless Steel.
TERMINAL/CONTACT: Copper alloy.
RoHS & Lead Free
