过流保护开关
详细介绍
过载保护开关，过载保护器SS-001 Series

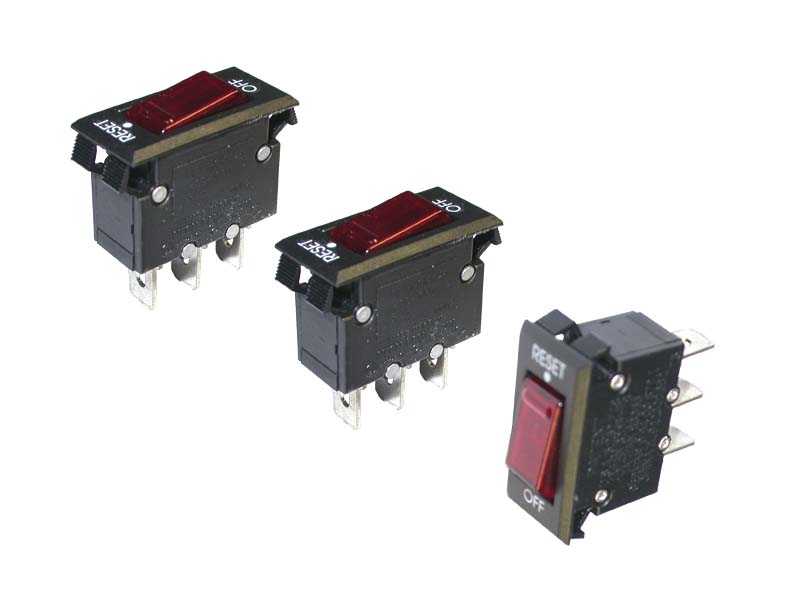

Single Pole Rocker Switch, Built with Circuit Breaker, Illuminated or Non-illuminated, 3-20A UL/CUL
2 IN 1 Rocker switche, built in with circuit breaker
3A TO 20A 125VAC/250VAC
Snap-in Mounting
Rating: 3A~20A 125/250Vac, 32Vdc (UL, CUL), 3A~16A AC250V (VDE)
Interrupt capacity: 1000A 32VDC/250VAC
Initial contact resistance : 50mΩ max.
Insulation resistance : 100MΩ min, at 500VDC
Dielectric strength : 1,250VAC for 1 minute
Electrical life : 6,000 cycles
Housing: Nylon 66, UL rated 94V-2 min.
Actuator: PC, UL rated 94V-2 min.
Lamp : Neon
Terminals: Silver plated brass
Contact arm: Bi-metal
Contact: Silver alloy

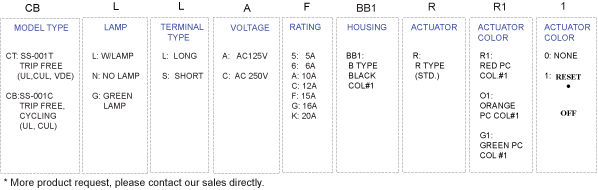

* Old part number SS-001-CBLL-1A15-BRR01 = CBLLAFBB1RR11

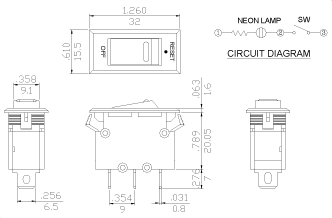

CBLL/CTLL

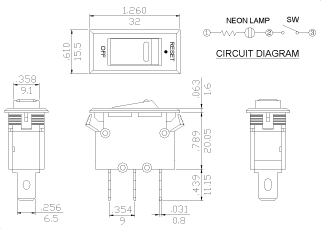

CBLS/CTLS

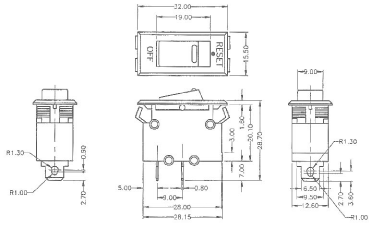

CBNL/CTNL

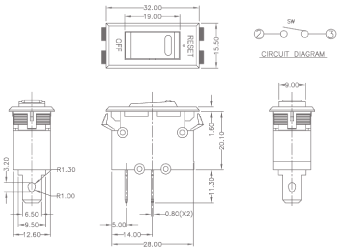

CBNS/CTNS
