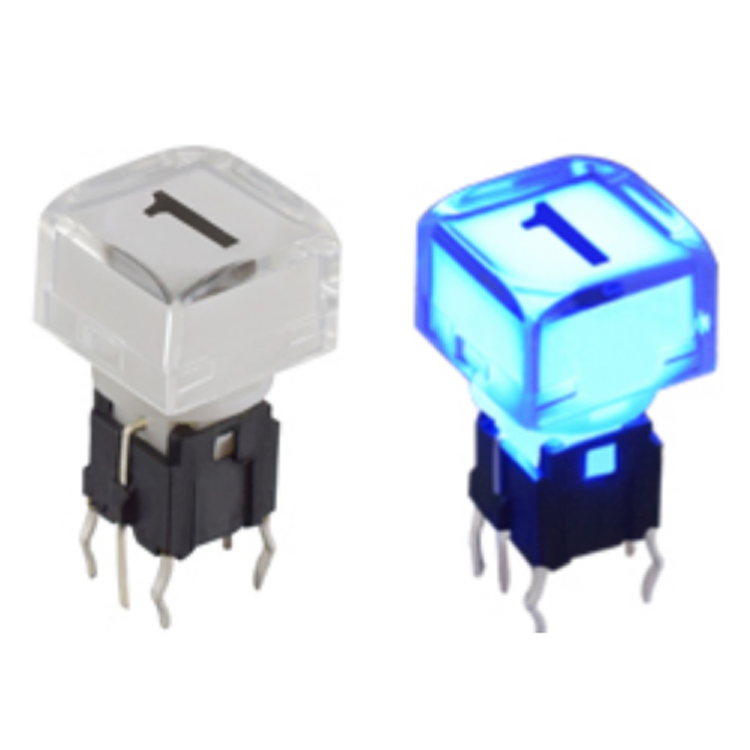

多色灯轻触开关
详细介绍
带灯轻触开关供应商，带灯开关生产厂家，多色灯按钮开关

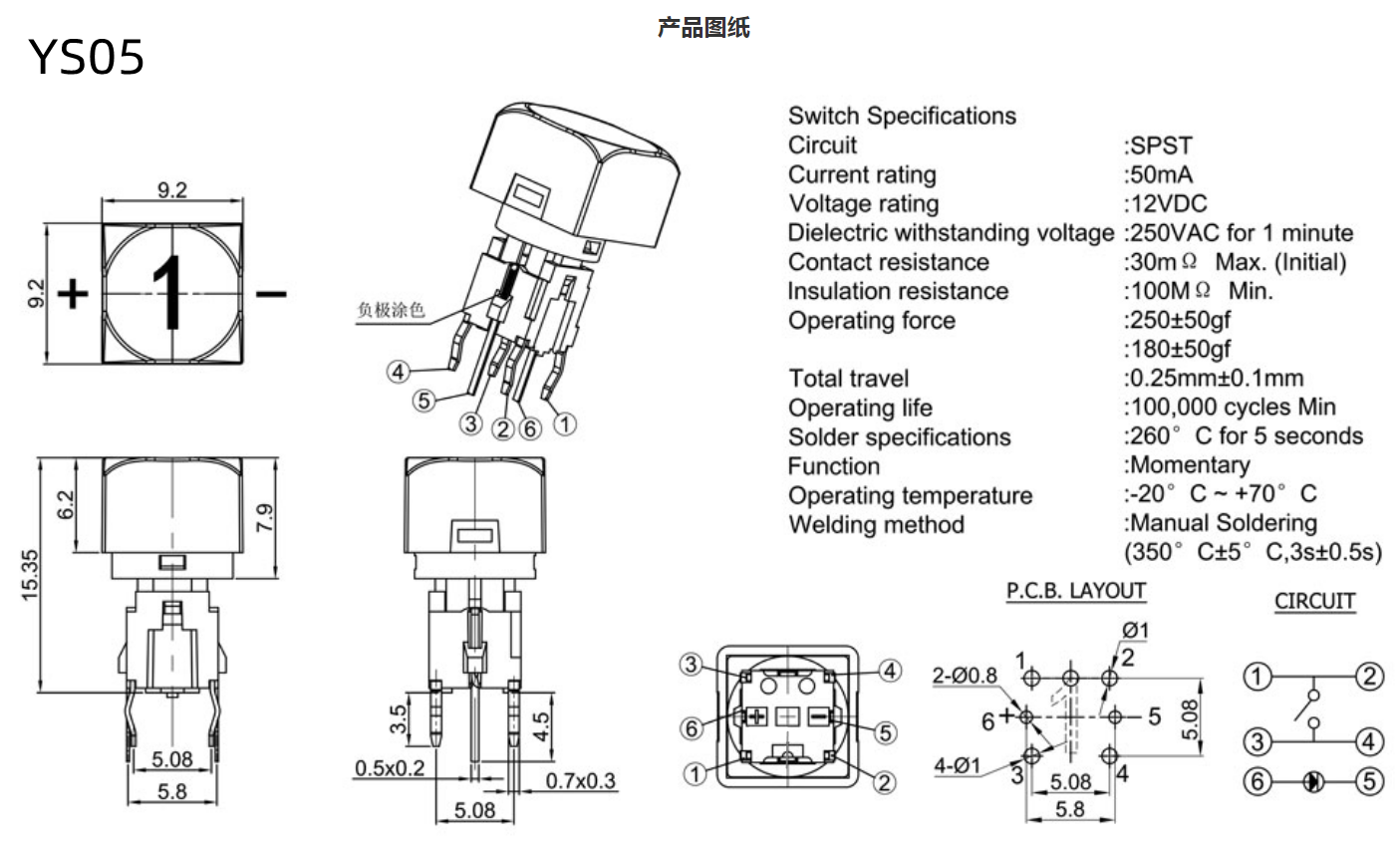

产品规格:
Circuit : SPST 1P1T
Current Rating : 50mA
Voltage Rating : 12VDC
Dielectric withstanding voltage : 250VAC for 1 minute
Contact Resistance : 100mΩ Max .(initial)
Insulation Resistance : 100MΩ Min,
Operating Force : 180±50gf or 250±50gf
Total Travel : 0.25±0.1mm
Operating Force : 200,000 Cycles Min
Solder Specifications : 260℃ for 3 Seconds
Function : Momentary
Operating Temperature : -20℃~ +70℃
应用领域:
Audio/Visual 音响/视听设备
Computer Peripherals 电脑外设
Consumer Electronics 消费类电子
Instrumentation 仪器仪表
Telecommunication 电信，通信设备
Medical Equipment 医疗设备
