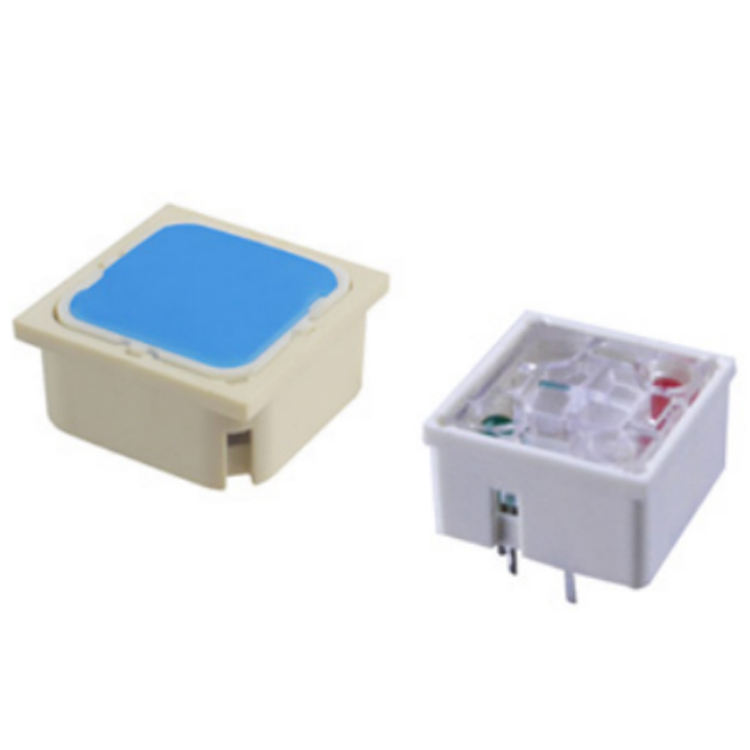

YS19带灯开关
详细介绍
SPECIFICATIONS
RATING : 100mA max, 42 VAC/DC
MECHANICAL LIFE : 1,000,000 cycles
CONTACT RESISTANCE : 100mΩ max.(initial)
INSULATION RESISTANCE : 1000MΩ min.
DIELECTRIC STRENGTH : 1,000 VAC
FORCE : 3N±0.75N
TRAVEL : 0.6±0.2mm
OPERATING TEMPERATURE RANG : -25°C~+70°C
MATERIALS
SWITCH HOUSING : PBT
TRANSPARENT ACTUATOR : PC
ACTUATOR : ABS
CONTACT : Stainless,Au or Ag plated
TERMINALS : Brass,Au or Ag plated
TERMINAL SEAL : Epoxy
应用领域:
Stage Lighting control equipment舞台灯光控制设备
Video processor 视频处理器
Matrix Controller 矩阵控制器
Security equipment 安防设备
Cashier Equipment 收银设备
