22mm信号开关
详细介绍

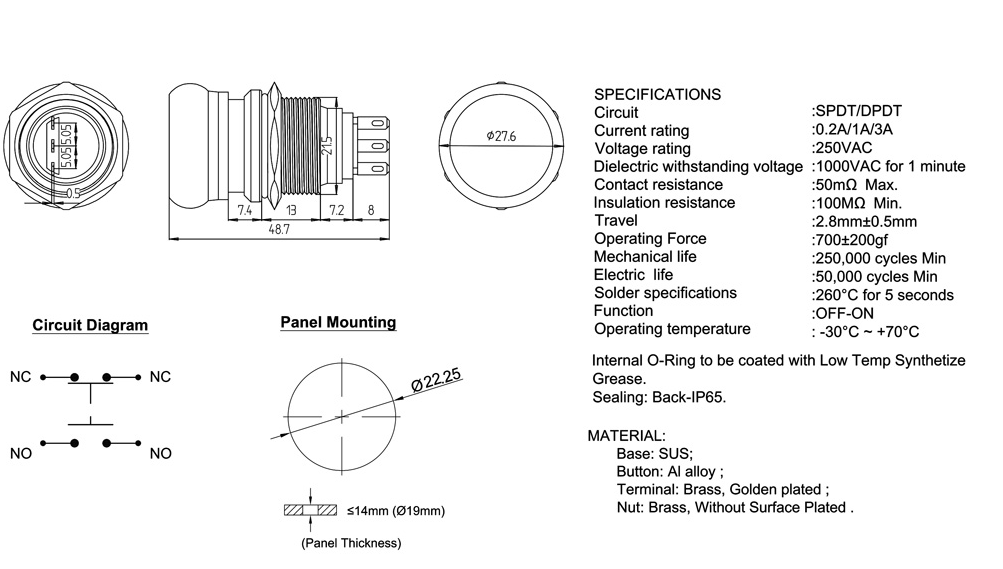

急停开关产品规格:
Circuit:SPDT/DPDT
Current rating:0.2A/1A/3A Voltage rating:250VAC
Dielectric withstanding voltage: 1000VAC for 1 minute
Contact resistance:50m Max
Insulation resistance:100M Min.
Travel:2.8mm+0.5mm
Operating Force:700±200gf
Mechanical life:250,000 cycles Min Electric life:50,000 cycles Min
Solder specifications:260°C for 5 seconds
Function:OFF-ON
Operating temperature:-30°℃~+70°℃
Internal O-Ring to be coated with Low Temp SynthetizeGrease.
Sealing: Back-IP65.
急停开关产品规格:
Circuit:SPDT/DPDT
Current rating:0.2A/1A/3A Voltage rating:250VAC
Dielectric withstanding voltage: 1000VAC for 1 minute
Contact resistance:50m Max
Insulation resistance:100M Min.
Travel:2.8mm+0.5mm
Operating Force:700±200gf
Mechanical life:250,000 cycles Min Electric life:50,000 cycles Min
Solder specifications:260°C for 5 seconds
Function:OFF-ON
Operating temperature:-30°℃~+70°℃
Internal O-Ring to be coated with Low Temp SynthetizeGrease.
Sealing: Back-IP65.
