30mm汽车防水按钮
所属分类：30mm金属按键开关
- 点击次数：
- 发布日期：2023/07/03
- 在线询价
详细介绍

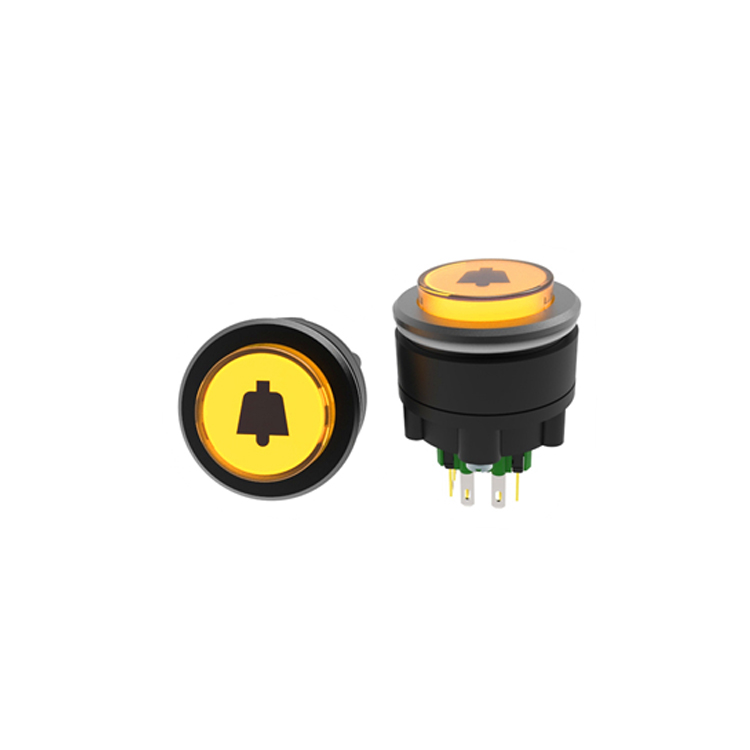

汽车按钮开关，汽车防水开关30mm Metal Pushbutton Switches
开关直径：30mm
产品简介：30系列汽车按钮开关，通过高低温测试；通过EMTEK防震动测试及TUV:IP67防水测试；
内置双色/三色LED切换功能，根据要求印制各种图案，并有防呆功能。
适用于特种车辆，农用车辆，民用工程车辆，卡车，挖掘机，起重机，准军事工业等，欧规美规认证齐全。
SAFETY/QUALITY APPROVALS
TUV/CQC/CE/SGS/REACH/IP67/CTUVUS
SPECIFICATIONS
Panel Thickness: Ø30.20mm
Contact Rating: lth 5A/250VAC resistive load 3A/250VAC
Mechanical Life: Momentary 200,000 cycles Self-lock 100,000 cycles
Electrical Life: 50,000 make-and-break cycles at full load
Torque: 5~14Nm
Travel: About 3.2mm
Operation Pressure: 1Pole 2.5±1N / 2Poles 3.5±1N
Contact Resistance: 50 mΩ max. @1A 12VDC (initial value)
Insulation Resistance: 1000MΩ min.at 500VDC
Dielectric Strength: 2,000 Vrms @sea level.
Operating Temperature: -40°C to 85°C
Ingress Protection: IP67
汽车防水按键开关材质说明：
MATERIALS
BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy
BASE : PA66,
ACTUATOR : PC ;
INNER ASSEMBLY : POM / PA66.
SPRING : Spring steel.
SEALING : Sillicone.
O-Ring : Sillicone
TERMINAL : Brass,with silver or gold plated.
HEX NUT : Nickel plated brass
带灯汽车开关灯压选择：
Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V
ILLUMINATION BASE RATlNG：
Red， Yellow and Orange：20mA 1.8V;
Blue, Green and White：20mA 2.8V
Beads Color：R/U/G/Y/0/W/RGB
