特殊订制摇头开关
•有各種段數可選擇
•把手和端子有多样化的选择.
•端子點膠預防在焊鍚時的汙染物
•应用范围：电信,仪器,测试设备,医疗设备.

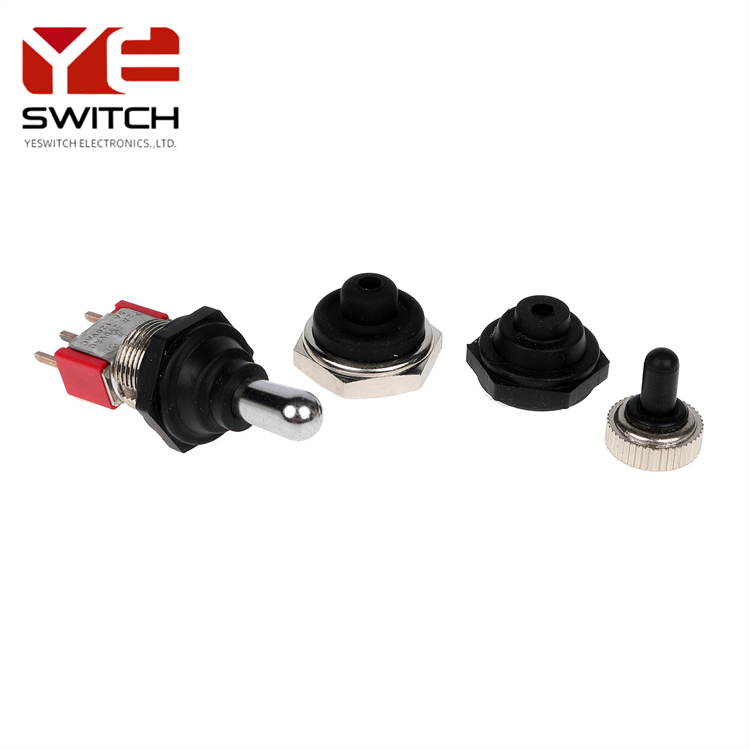

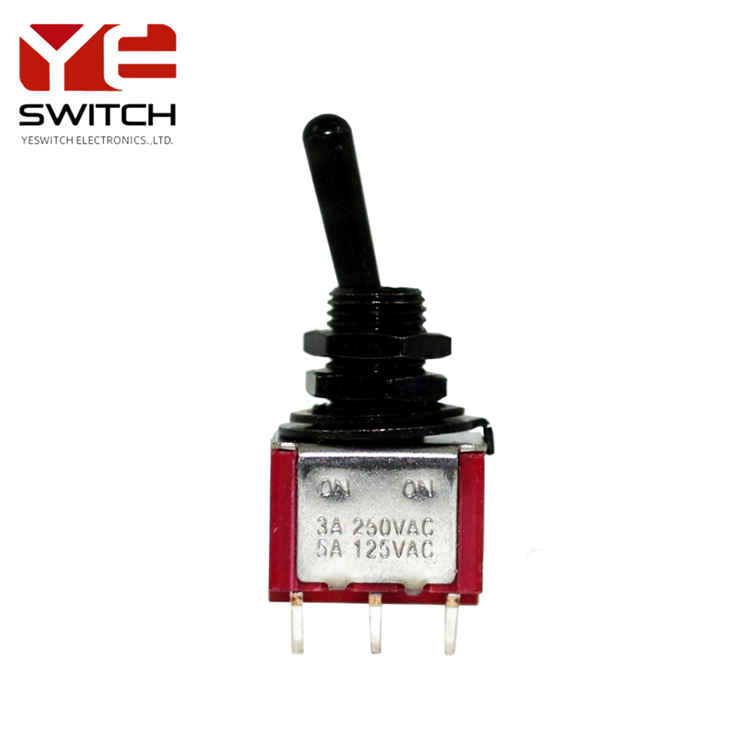

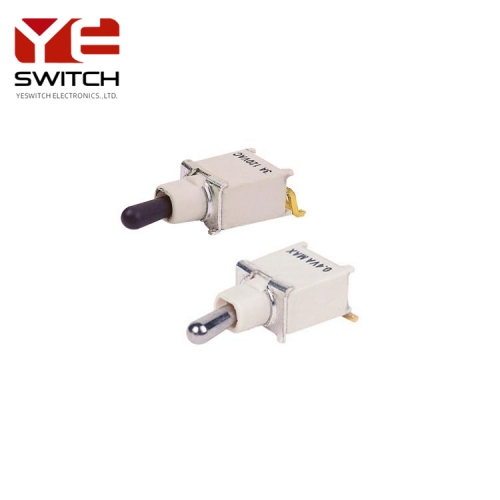

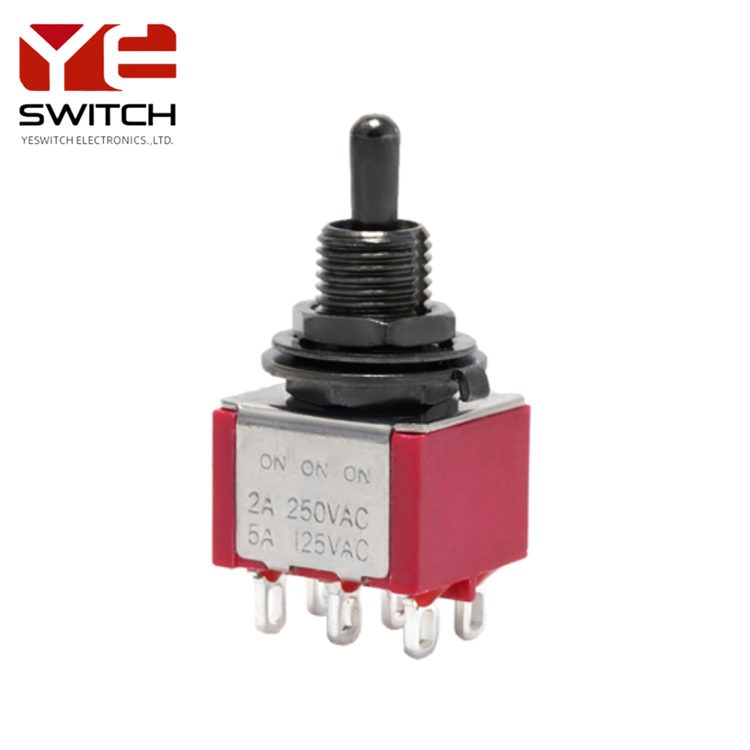

镀金钮子开关，镀银钮子开关，枪色钮子开关产品图片展示：
功率：取决于触点材料.【5A@120VAC和28VDC 2A@250VAC 最大0.4VA@最高20VAC/DC】
CONTACT RATING: Dependent upon contact material See page 11.
机械寿命：40000次操作以上.
MECHANICAL LIFE: 40,000 make-and-break cycles.
接触电阻：在2-4VDC,100mA时，镀银和镀金点的最大电阻为10毫欧.
CONTACT RESISTANCE: 10mȟmax. initial @ 2-4VDC,100mA for both silver and gold plated contacts.
绝缘电阻：最小1000兆欧.
INSULATION RESISTANCE: 1,000 Mȟġmin.
绝缘强度：触点间最低1000VAC至少1分钟，在触点与外壳之间最低1000VAC至少一分钟.
DIELECTRIC STRENGTH: 1,000 Vrms min.@sea level.
工作温度范围：-30°C到85°C.
OPERATING TEMPERATURE: -30°C to 85°C.
材质：
MATERIALS
外壳：苯二酸二烯丙酯树脂（UL94V-0)
CASE: Diallyl phthalate (DAP) (UL94v-0).
摇杆：黄铜镀铬.
ACTUATOR: Brass,chrome plated.
铜头：黄铜镀镍.
BUSHING: Brass, nickel plated.
框架：不锈钢.
HOUSING: Stainless steel.
支撑支架：铜镀锡.
SWITCH SUPPORT: Brass, tin plated.
CONTACT / TERMINALS: Brass, Silver or gold plated.
弹片&端子：镀金或镀银.
焊锡条件
手工焊：用烙铁30瓦，控制在350℃，约5秒，同时应用焊料.
MANUAL SOLDERING: Use soldering iron of 30 watts, controlled at 350℃，approximately 5 seconds while applying solder.
波峰焊：推荐焊接温度：260±5℃
WAVE SOLDERING: Recommended Soldering Temperature: 260±5℃
锡侵泡时间：最多5秒.(PCB板的厚度为1.6mm)
Duration of Solder Immersion: Max 5 sec. (PCB is 1.6mm in thickness)
焊接：波峰炉
