复位功能钥匙开关
详细介绍
19mm钥匙开关，4A钥匙开关，大电流钥匙开关，复位功能钥匙开关

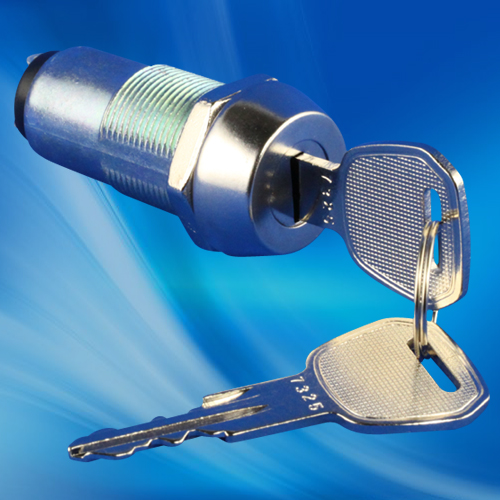

产品型号：S246 S246M
产品名称：KEYLOCK SWITCH
产品说明：
锌合金锁壳，锁心，三价锌电镀
锁壳包白铁盖，附防尘块
5个排片
双边铣齿铜钥匙，镀镍
钥匙可单抽或者双抽
镀银接点及端子
S246 2档 通电方式 off-on 2支端子.
S246M 2档 通电方式 off-(on) 2支端子 钥匙为反弹式。
锁头固定方式为六角螺母
规格品为同号或25组钥匙组合
最多有100组钥匙组合
Introduction

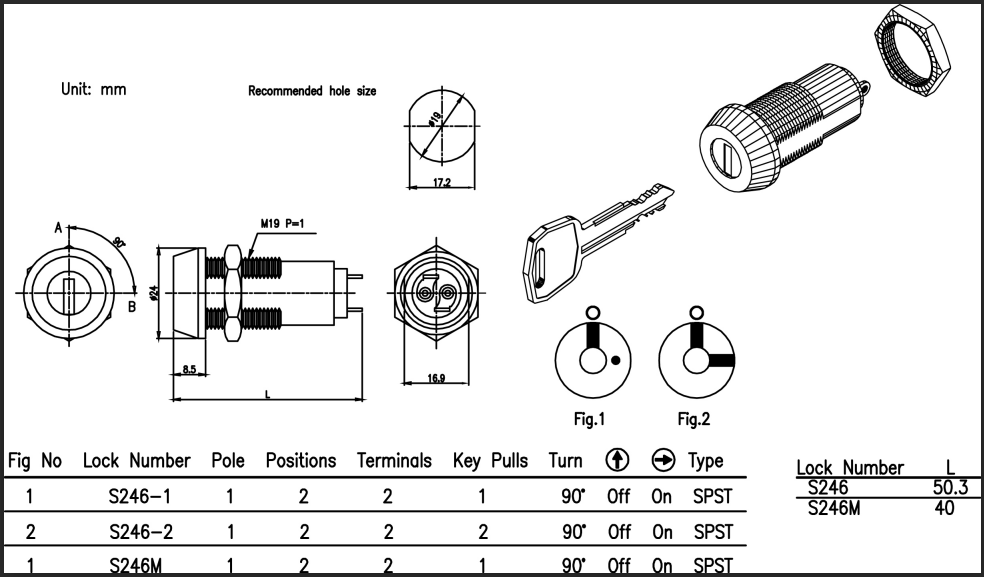

No. S246 S246M
Product Name S246 S246M
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
Stainless steel capped bezel with dust shutter mechanism.
5 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Silver plated contacts and terminals.
S246 2 position off-on 2 terminals.
S246M 2 position off-(on) 2 terminals, spring loaded for momentary contact.
Hex nut mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC - 1 Minute.
