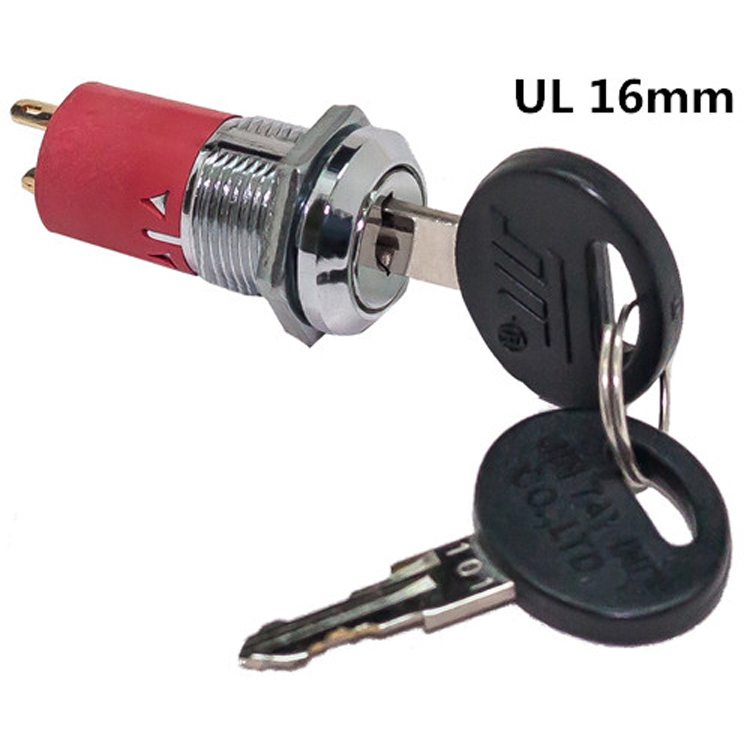

直径16mm电源锁,UL认证
详细介绍

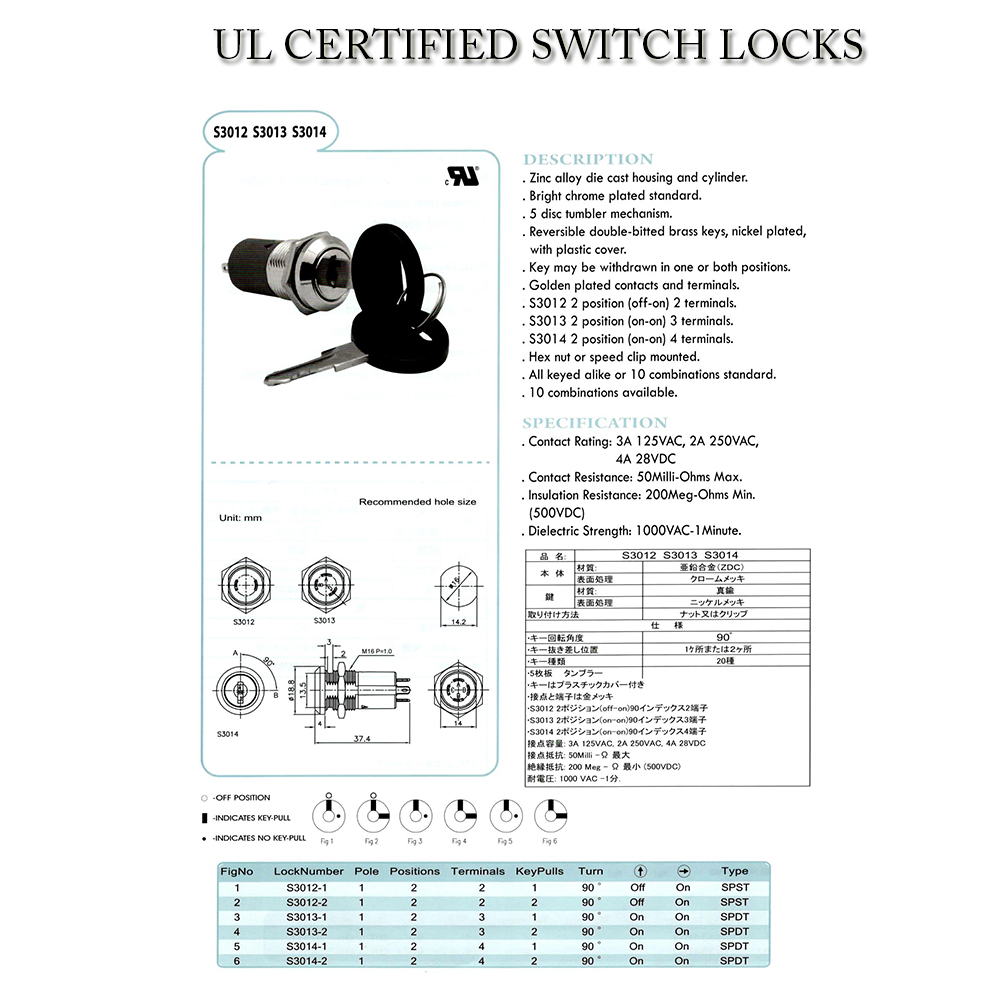

No. S3012 S3013 S3014
Product Name S3012 S3013 S3014
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
5 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated, with plastic cover.
Golden plated contacts and terminals.
S3012 2 position (off-on) 2 terminals.
S3013 2 position (on-on) 3 terminals.
S3014 2 position (on-on) 4 terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 3A 125VAC, 2A 250VAC, 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 200Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000VAC-1Minute.
Product Name S3012 S3013 S3014
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
5 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated, with plastic cover.
Golden plated contacts and terminals.
S3012 2 position (off-on) 2 terminals.
S3013 2 position (on-on) 3 terminals.
S3014 2 position (on-on) 4 terminals.
Hex nut or speed clip mounted.
SPECIFICATION
Contact Rating: 3A 125VAC, 2A 250VAC, 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 200Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000VAC-1Minute.
