多种钥匙组合电源锁
详细介绍

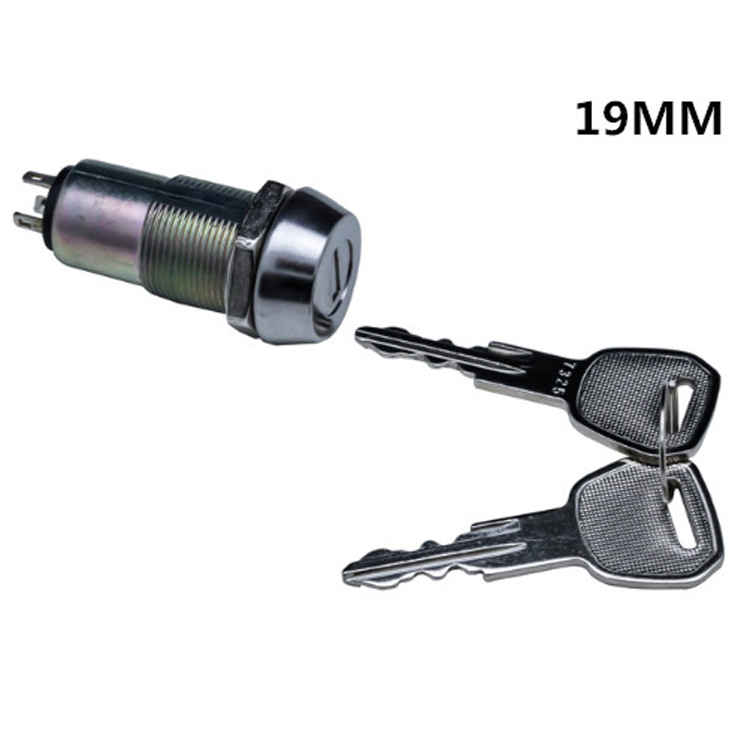

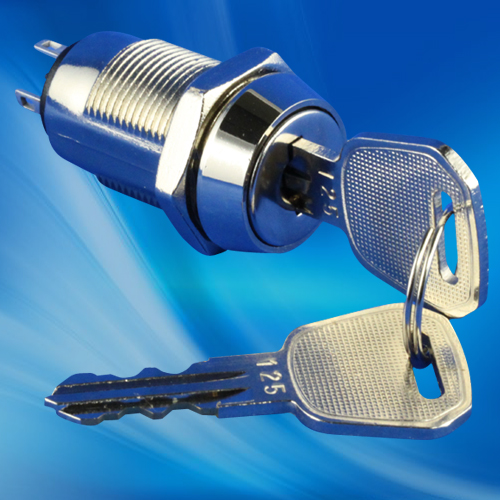

19mm钥匙开关，4A钥匙开关，大电流钥匙开关，多种钥匙组合形式钥匙开关
产品型号：S246-3C
产品名称：KEYLOCK SWITCH
产品说明：
锌合金锁壳，锁心，三价锌电镀
锁壳包白铁盖，附防尘块
5个排片
双边铣齿铜钥匙，镀镍
钥匙可单抽或者双抽
镀银接点及端子
3支端子，通电方式OFF-ON
锁头固定方式为六角螺母
规格品为同号或25组钥匙组合
最多有100组钥匙组合
Introduction
No. S246-3C
Product Name S246-3C
Description
Zinc alloy die cast housing and cylinder.
Bright chrome plated standard.
Stainless steel capped bezel, dust shutter mechanism.
5 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Silver plated contacts and terminals.
2 position off-on， 3 terminals.
Hex nut mounted.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max.
Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC - 1 Minute.
