S2096 S2097 S2098 S2099
详细介绍
Introduction

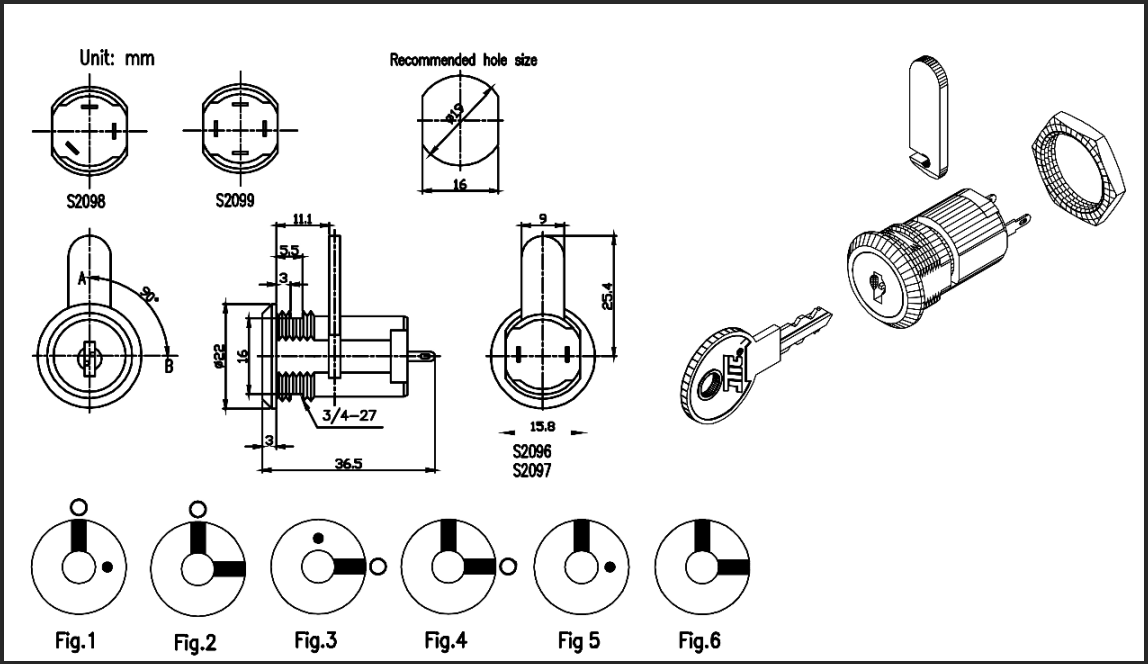

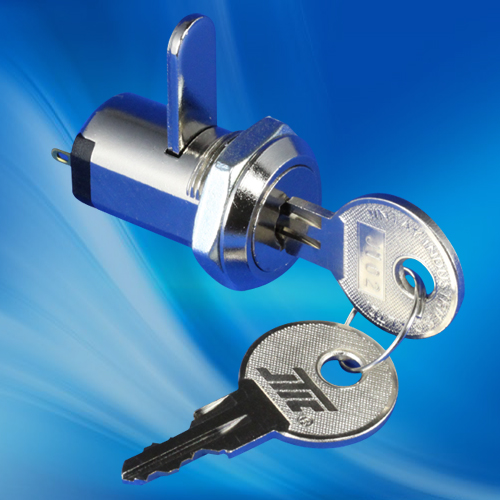

Product Name S2096 S2097 S2098 S2099
Description
Zinc alloy die cast housing and cylinder.
Bright nickel plated standard.
4 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Dual-functioned Key Lock Switch.
Silver plated contacts and brass terminals.

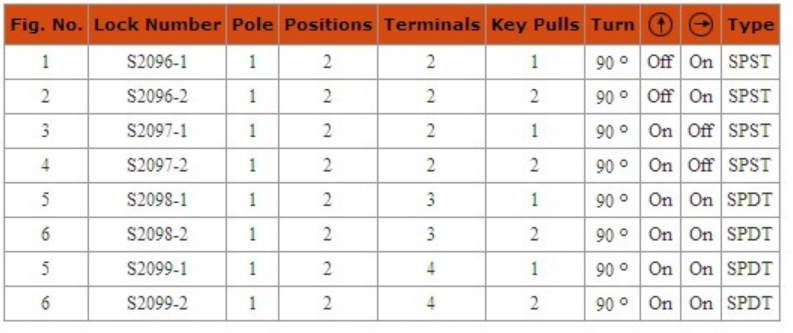

S2096 2 position OFF-ON 2 terminals.
S2097 2 position ON-OFF 2 terminals.
S2098 2 position ON-ON 3 terminals.
S2099 2 position ON-ON 4 terminals.
Hex nut or speed clip mounted.
ALL keyed alike or 25 combinations standard.
25 combinations available.
SPECIFICATION
Contact Rating: 4A 125VAC, 2A 250VAC.
Contact Resistance: 50Milli - Ohms Max.
Insulation Resistance: 200 Meg - Ohms Min. (500VDC)
Dielectric Strength: 1000 VAC - 1 Minute.
锌合金锁壳，锁心，吊镍电镀
4个排片
双边铣齿铜钥匙，镀镍
电源及挡片双功能锁
钥匙可单抽或者双抽
镀银接点及端子
S2096 2支端子 通电方式OFF-ON.
S2097 2支端子 通电方式ON-OFF.
S2098 3支端子 通电方式ON-ON.
S2099 4支端子 通电方式ON-ON.
锁头固定方式为六角螺母或插片.
规格品为同号或25组钥匙组合.
最多25组钥匙组合.
