反弹功能钥匙开关
详细介绍

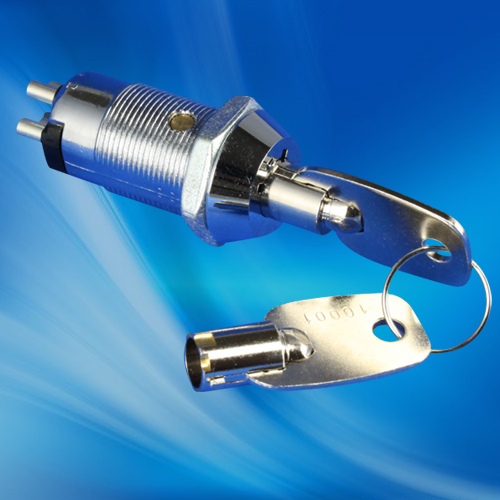

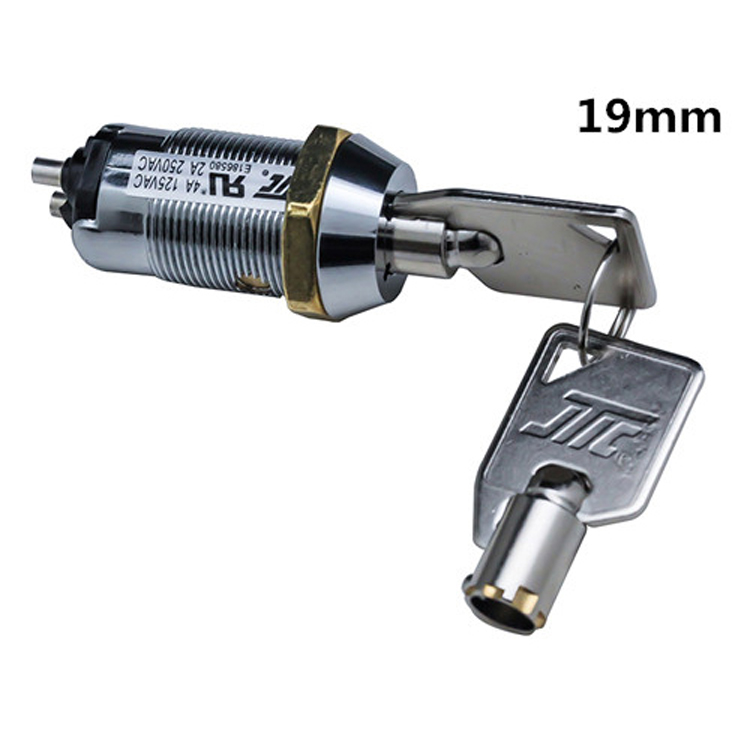

19mm钥匙开关，可回弹钥匙开关，三挡钥匙开关
Introduction
19mm钥匙开关，可回弹钥匙开关，三挡钥匙开关
产品型号：S202ZC S202ZD S202ZDA
产品名称：KEYLOCK SWITCH
产品说明：
锌合金锁壳，锁心，亮铬电镀
7个珠子
铁制铜管钥匙，镀铬
钥匙可单抽或者双抽
镀银接点及端子
S202ZC 4支端子，通电方式OFF-ON-ON
S202ZD 4支端子，通电方式ON-ON
S202ZDA 4支端子，通电方式ON-ON,钥匙为反弹式
锁头固定方式为六角螺母
规格品为同号或每100PCS作1组钥匙组合
最多有10000组钥匙组合
Introduction
No.S202ZC S202ZD S202ZDA
Product Name S202ZC S202ZD S202ZDA
Description
Zinc alloy die cast housing and cylinder
Bright chrome plated standard.
7 pin tumbler mechanism.
Steel made tubular keys, nickel plated.
Silver plated contacts and terminals.
S202ZC 3 position（OFF-ON-ON）4 terminals.
S202ZD 2 position (on-on) 4 terminals.
S202ZDA 2 position (on-on) 4 terminals, spring loaded for momentary contact.
Hex nut mounted.
