IP67防尘防水滑动开关
详细介绍
5YCSE系列

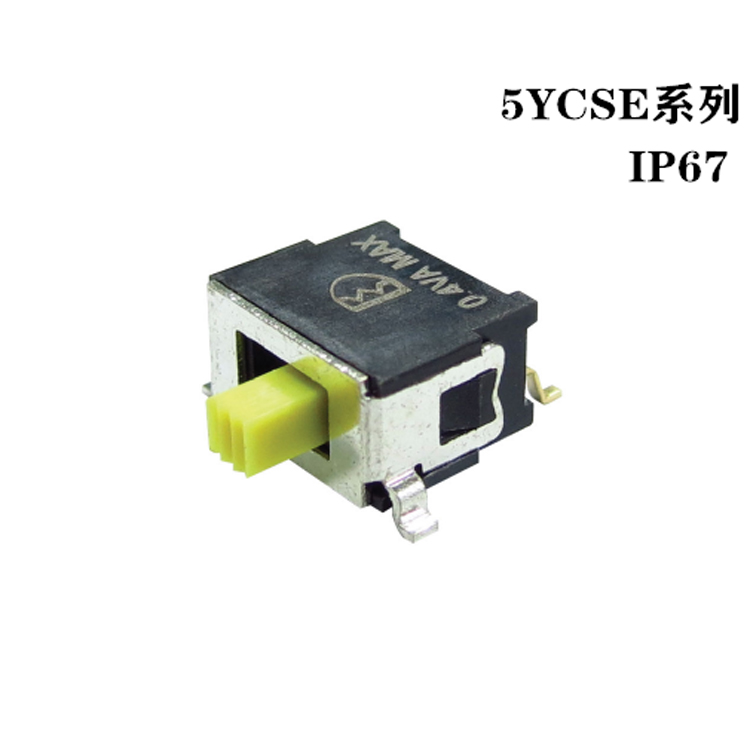

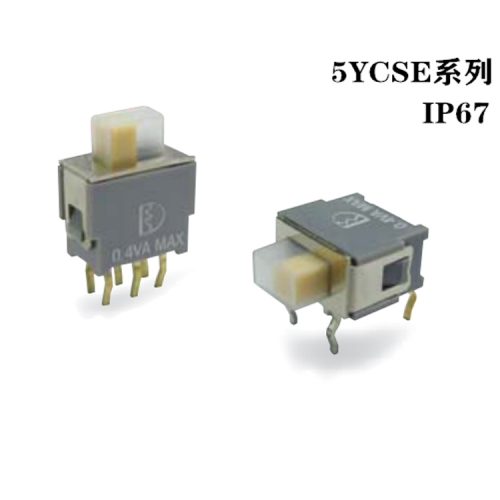

防水滑动开关图片展示:
5YCSE系列防水滑动开关中文规格:
特色:超小型的设计可即省PCB上的空間
应用范围:检测仪器/设备,电脑周边设备,通訊和网通设备,麦克风、热水器
功率:最大0.4VA在最高48VAC/DC
机械寿命:最低40,000次操作
接触电阻:最大50毫欧
绝缘电阻:500兆欧在250VDC
绝缘强度:在500V,50HZ的持续时间为一分钟
工作温度范围:-20度85度
最小负载:镀银:100mA 10VDC;镀金:10mA50mV
防水等级:IP67
材质
滑柄:PBT,黄色
框架:黄铜镀镍
外壳:PBT,符合(UL94V-0),可水洗
支撑支架:铜镀锡
弹片/端子:磷青铜镀金镀镍
终端密封:环氧树脂
5YCSE系列防水滑动开关英文规格:
SPECIFICATIONS
CONTACTRATING:Max 0.4 VA max @ 48 VAC or DC
MECHANICAL LIFE:minimum 40,000 operations.
CONTACTR RESISTANCE:500m&max.
INSULATION RESISTANCE:500m& at 250 VDC.
DIELECTRIC STRENGTH:500V,50 Hz for the duration of 1 mimute.
OPERATING TEMPERATURE:-20℃ to 80℃.
DEGREE OF PROTECITON:IP67
MATERIALS
ACTUATOR:PBT,yellow std.
HOUSING:SPCC
CASE:Meets (UL94V-0),Washable
SWITCH SUPPORT:Brass,tin plated.
CONTACT/TERMINALS:Phosphor bronze gold-plated over nickel barrier.
TERMINAL SEAL:Epoxy
SOLDERING PROCESSES
WAVE SOLDERING:Recommended Soldering Temperature:260±5℃
Duration of Solder Immersion:Max 5 sec.
(PCB is 1.6mm in thickness)
SOLDERING:Vapor phase
